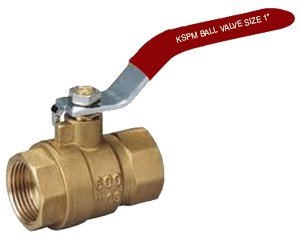

Forged Brass Ball Valve Threaded Ends to BS21 Full Bore
-
Parts And Materials
No. Parts Name Material 01 Body Forged Brass 02 Bonnet Forged Brass 03 Stem Brass Rod 04 Ball Forged Brass 05 Ball Seat PTFE 06 O ring FPM 07 Handel Carbon Steel -
Max Working Pressure
W.O.G . non shock 1/4”-3” 4.12MPa4”.2.75MPa Saturated Steam 0.98MPa(9..8bar)
Dimension Table
| Dimensions | MM | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| DN | 8 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 75 |
| d:(Bore) | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 76 |
| L | 42 | 53 | 63 | 72 | 84 | 92 | 110 | 138 | 167 |
| H | 37 | 40 | 40 | 49 | 55 | 64 | 72 | 101 | 112 |
| DI | 70 | 80 | 80 | 110 | 110 | 150 | 150 | 200 | 300 |
| SI | 20 | 26 | 32 | 39 | 48 | 55 | 68 | 84 | 99 |
